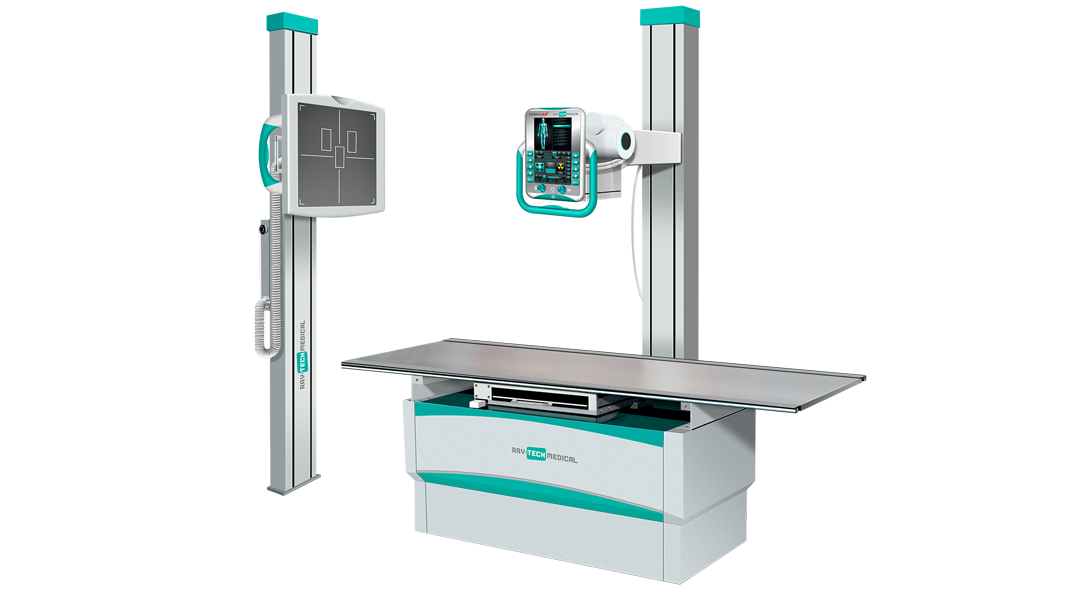

Max-X DR Classic is a cost-effective, general purpose, digital radiographic system, performs all general examinations with one single 35x43 cm portable flat panel detector. The detector easily insertable into the table or wallstand, but the same detector can be used for overtable and wheelchair exposures as well. The 4-way floating top elevating table, the well-maneuverable rotatable tubestand, and the fully counter balanced vertical wallstand provide quick and easy positioning. The integrated high-frequency X-ray generator, the automatic digital image processing and the user frendly touch-screen operator console make it a real universal and easy-to-use workstation, ideal for all routine radiographic examinations. The system is connected to the hospital PACS as a standard DICOM modality.
Optionally the system can be ordered with mobile patient table, or even with double 43x43cm detectors - one dedicated to the patient table and the other to the wall stand, either with wired or wifi data connection.
The easy positioning of the Max-X DR Classic system is assured by the extra high load capacity elevating table with 4-way floating top, and the connected fully counter balanced floor mounted tubestand. The tube is rotatable around the horizontal axis and moveable in cross-table direction. The column is rotatable around the vertical axis and has extra long horizontal travel distance. The tubestand and the detector docking station can be coupled electrically in the table, so the detector can follow the horizontal movement of the tube automatically. The precise vertical wallstand is fully counter balanced and equipped with tilting front panel.
Optionally the Max-X DR Classic system can be equipped with mobile patient table, rolled on four wheels, featured with floating table-top and motorized height adjustment
In basic version Max-X DR Classic system is equipped with one 35x43 cm high resolution amorphous-Silicon digital flat panel detector, capable of creating high quality fine X-ray images with very low patient dosage. The detector can be inserted into the docking station of the table or the wallstand, providing cost-effective use of one single portable detector for both devices. As an additional benefit the same detector can be used for over-table or wheel-chair exposures as well. The detector connection to the controller PC can be wired or Wi-Fi. The image appears on the touch screen monitor within 6 sec after exposure.
For larger image area or to increase the workflow the system can be equipped with 2 pcs portable or fix mounted 43x43 cm large area detectors – one dedicated to the table and the other to the wallstand. For special purposes the system can be completed with a high-resolution third detector.
In the Max-X DR Classic system X-ray is provided by a modern, microprocessor controlled, high frequency X-ray generator and its associated rotating-anode fine-focus X-ray tube. The generator control is integrated to the common touch-screen control panel of the imaging system. Optimal image quality is guaranteed by the built-in AEC dose control. The supervisor program monitors the system status and any operator intervention all the time - thus effectively preventing any setting or events that could cause damage or overload to the system.
The Max-X DR Classic system is controlled from a large, integrated touch-screen console. All functions are accessible here: worklist handling, patient administration, study selection, generator control. It displays the preview image after exposure, and when the operator checked, it can be sent to the connected PACS for storage and processing (evaluation, printing, archiving etc). The built in software performs automatic image optimization, but wide range of manual image post-processing functions are available as well. The ergonomic design and large icons ensure reliable control in any environment.
